The Scotmas Delta WA Chlorine Dioxide Generation and Dosing System is designed to produce a stream of ClO₂ solution for potable water, cooling tower dosing, wastewater treatment, food processing and other industrial applications.

Every Delta WA system uses two concentrate precursor chemicals to produce ClO₂ solution on-demand from the water being treated.

No storage of ClO₂ solution is required, removing the risk of the solution starting to gas off or chemically break down, both of which are potentially hazardous.

A dilution water flow carries the generated ClO₂ as an aqueous solution to the injection point.

Generation only takes place within a flooded reactor, providing maximum protection for system operators and users.

The flexibility of the Delta WA system allows for it to be configured for most industrial applications, and the safety and ease of use of the reactor system makes it an ideal alternative to traditional Chlorine Dioxide generators.

Delta WA Chlorine Dioxide Generator - Scotmas

Download Delta WA Brochure

Submerged Reactor System
Monitoring
Enclosures

Bravo WA Chlorine Dioxide Reactor - Scotmas

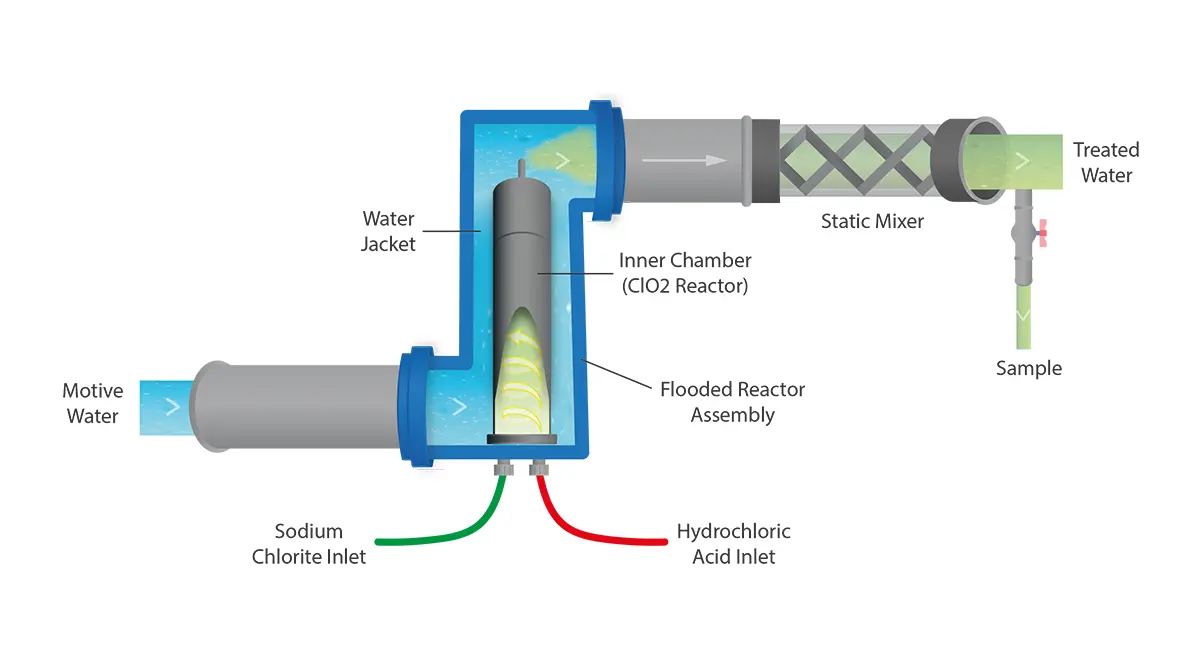

All Chlorine Dioxide generation is undertaken in our unique Submerged Reactor System.

The precursor chemicals are mixed within the Submerged Reactor inner chamber, located inside the flooded outer chamber. In the unlikely event of a leak from the reactor, the concentrated chemical will be instantly diluted by the surrounding water.

Chlorine Dioxide production conforms with EN12671:2009 when the precursors used are compliant with EN938 (sodium chlorite) and EN939 (hydrochloric acid).

Option to include digital and analogue inputs to control the system.

Includes a variety of alarm inputs, allowing for dosing

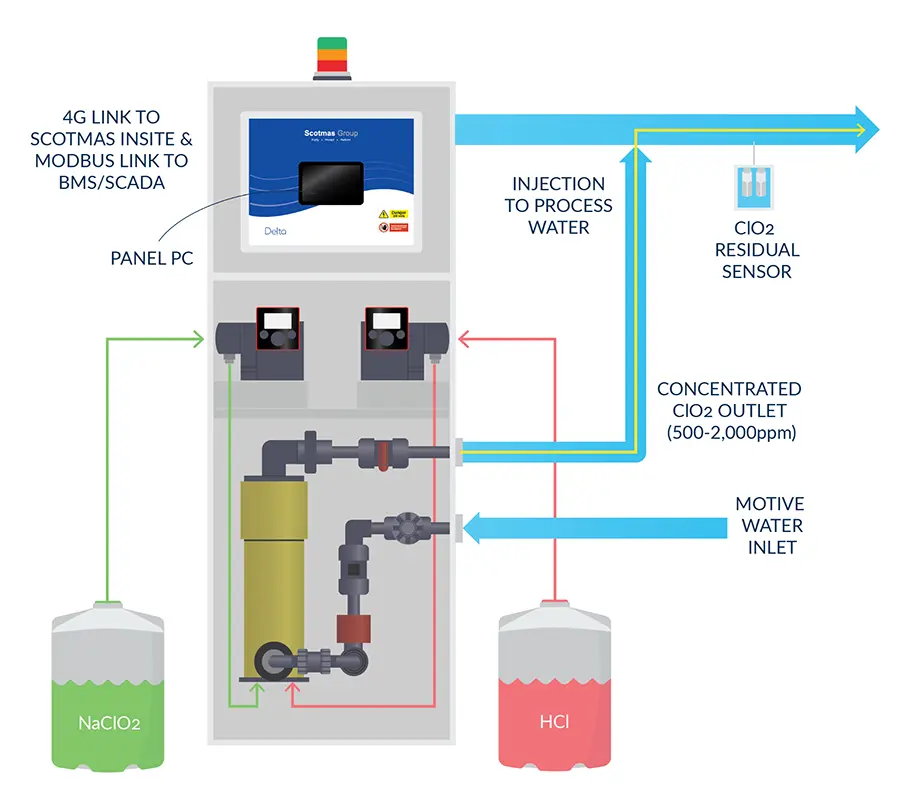

Our system offers installation flexibility directly to your water line or tank. The water-jacketed reactor maximises generator safety by providing an added layer of protection. In addition, we offer complete remote monitoring through Insite, making it easy to monitor your system from anywhere at any time. The system can also wholly integrate with BMS/SCADA systems via Modbus IP link.

Moreover, the system can easily integrate with multiple remote sensors on the site up to 1km via Lora Radio Link. With full onboard data logging and alert reporting, you can easily keep track of your system’s performance and receive alerts when necessary. The integrated chemicals management and alerting feature ensures that you are always aware of the status of your system’s chemicals.

Finally, the system offers a simple installation process, making it easy to set up and start. With these features, our system is a reliable and efficient solution for your water treatment needs.

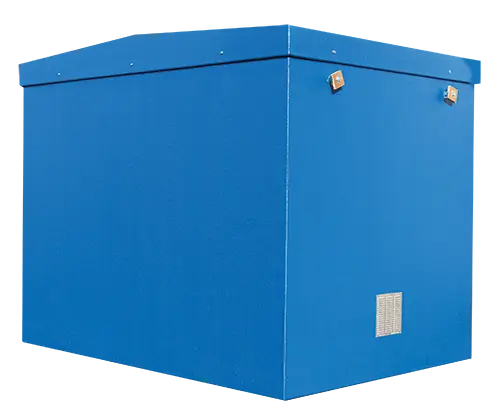

Scotmas Delta WA can also be supplied as a wall mounted unit, in a GRP enclosure suitable for outdoor installation or in a customised engineered enclosure.

Submerged Reactor System: All Chlorine Dioxide generation is undertaken in our unique Submerged Reactor System.
The precursor chemicals are mixed within the Submerged Reactor inner chamber, located inside the flooded outer chamber. In the unlikely event of a leak from the reactor, the concentrated chemical will be instantly diluted by the surrounding water.
Chlorine Dioxide production conforms with EN12671:2009 when the precursors used are compliant with EN938 (sodium chlorite) and EN939 (hydrochloric acid).
Option to include digital and analogue inputs to control the system.
Includes a variety of alarm inputs, allowing for dosing
Monitoring: Our system offers installation flexibility directly to your water line or tank. The water-jacketed reactor maximises generator safety by providing an added layer of protection. In addition, we offer complete remote monitoring through Insite, making it easy to monitor your system from anywhere at any time. The system can also wholly integrate with BMS/SCADA systems via Modbus IP link.
Moreover, the system can easily integrate with multiple remote sensors on the site up to 1km via Lora Radio Link. With full onboard data logging and alert reporting, you can easily keep track of your system’s performance and receive alerts when necessary. The integrated chemicals management and alerting feature ensures that you are always aware of the status of your system’s chemicals.
Finally, the system offers a simple installation process, making it easy to set up and start. With these features, our system is a reliable and efficient solution for your water treatment needs.
Enclosures: Scotmas Delta WA can also be supplied as a wall mounted unit, in a GRP enclosure suitable for outdoor installation or in a customised engineered enclosure.

Typical Applications

Delivering Chlorine Dioxide systems engineered to suit your individual needs.

Industrial Service Water. Scotmas - Chlorine Dioxide Specialist.

Industrial Water Treatment

Food and Beverage Production, Mollusc Control, BOD and COD reduction prior to discharge.

Wastewater Treatment

Polishing of TSE before water recycling/reuse or discharge to the environment.

Beef and diary cattle. Scotmas - Chlorine Dioxide Specialist.

Agricultural Feed Water Disinfection

Provide animals with clean water and maximise their genetic potential.

Potable Water

Disinfect drinking water throughout the water treatment process.
